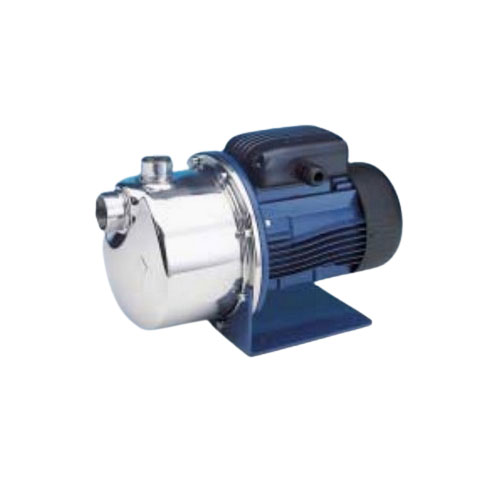

Lowara BG SERIES

Lowara BG SERIES

SELF-PRIMING CENTRIFUGAL PUMPS

Close-coupled centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases. The extensive use of pressed stainless steel ensures a high-performance, durable and lightweight pump.

Deskripsi

APPLICATIONS

Water handling for domestic use.
Lawn sprinkling.
Composition of surge tank units for pressure boosting in various applications.
Washing and transfer.

SPECIFICATIONS

Delivery: up to 70 l/min (4,2 m3 /h).
Head: up to 53 m.
Maximum operating pressure: 8 bar.
Maximum total lift 8 m (1”1/4 suction pipe and foot valve for water at 20°C).
Continuous duty.
Temperature of pumped liquid: -10°C to +40°C.
Max ambient temperature: 40°C.
Enclosed motor with external ventilation and aluminium alloy finned casing.
Versions: Single-phase 220-240 V 50 Hz, permanently connected capacitor and built-in automatic reset overload protection.
Three-phase 220-240/380-415 V 50 Hz, thermal overload protection to be provided by user.
Power up to 1.1 kW.
Class F Insulation.
IP 55 protection.
